motivewave and linux performance improvements

I finally did a test of @Hermann solution and while I could not measure a big difference for loading the daily chart on ES or the 2m chart on Gold, the loading of the 2kt chart of ES was reduced from 14s with the original settings to around 7s with Hermann's run.sh and no additional values in the startup.ini.
Thank you very much for that!
Still not sure why it takes that long in the first place for MW, even 7s are not that fast :D

I am using MW on Ubuntu 24.04, and I could not get it running on GPU.
I upgraded the NVIDIA driver up to nvidia-driver-570 using `cuda-drivers` installation as explained in Docs. But the best part I found on that page was that if running Gnome or KDE, any application can be selected to run on the discrete GPU directly from the desktop by right-clicking on the application icon. Now MW is using the GPU! :sneaky:;)
Hope this helps someone.


Attachments

Recently switched to linux and this thread has been very helpful with fixing some of the issues (mouse scrolling, specifically) - thanks for that! I do wonder if anyone still experiences motivewave to have lower fps so to speak, compared to windows? Specifically when looking at the volume imprint or the time and sales I can see that the 'refresh rate' of it seems slower than on windows. Can anyone relate to that? Not super big deal, but wonder if that's something that can be improved. I already implemented all the suggested in this thread (max vram,heap,threads,etc).

Also noticed during RTH Open (e.g. on NQ) when it's volatile I get the entire motivewave screen blinking black for a split second, then back to normal, which happens semi frequently, to the point where it's a bit annoying. Anyone else experienced that?

Also noticed during RTH Open (e.g. on NQ) when it's volatile I get the entire motivewave screen blinking black for a split second, then back to normal, which happens semi frequently, to the point where it's a bit annoying. Anyone else experienced that?
I only use MW very rarely on a non-linux system, so I don't have enough datapoints to compare the 'refresh rates', I'm afraid.
I do however see the occasional 'black blink', but am not sure whether this is due to high volatility or not. I will keep my eye open for that and report back if I find anything of use :)

I only use MW very rarely on a non-linux system, so I don't have enough datapoints to compare the 'refresh rates', I'm afraid.
I do however see the occasional 'black blink', but am not sure whether this is due to high volatility or not. I will keep my eye open for that and report back if I find anything of use :)
Thanks Spin. I tried recording my screen to show the difference, it was a big pain to do it, but here it is. Windows one definitely feels snappier (on the right). Granted linux (on the left) is a replay mode, but it's pretty much the same experience during live action. Same hardware used for both. Hopefully you can see the difference: https://streamable.com/1jnzy9

Yes, exactly that.

You're not using any form of virtualization, right ?

I would shoot an email towards MW-Team: they might be interested in your setup, to be able to debug further (and hopefully get rid of this once and for all):)

You're not using any form of virtualization, right ?
That's right

I would shoot an email towards MW-Team: they might be interested in your setup, to be able to debug further (and hopefully get rid of this once and for all):)
Did that, thanks. Will post an update if I hear something useful from them (y)

Many thanks to everyone. I added two lines for export GDK_CORE_DEVICE_EVENTS=1 and export GDK_BACKEND=x11, and it fixed the mouse scrolling issue.

For newcomers to Linux: if you are using Debian or a Debian-based Linux distribution, you need to open /usr/share/motivewave/run.sh and modify it as shown below:

Bash:
#!/bin/bash
# MotiveWave Java Launcher for Linux.
# This script combines the robust argument handling of the macOS script
# with Linux-specific path conventions and existing scaling detection.

# Exit immediately if a command exits with a non-zero status.
export GDK_CORE_DEVICE_EVENTS=1
export GDK_BACKEND=x11
set -e


I switched to Linux Mint Cinnamon version 22.3 a few days ago (I now use Windows 11 only in a virtual machine). Apart from the mouse scrolling issue, MotiveWave is much faster and smoother. In particular, the 1-day ES chart opens faster, and replay mode loads faster as well. I might modify run.sh a bit more later, but I am already happy with the performance.

I also asked an AI to write a Bash script for me. If you don’t want to make this change every time you install a new MotiveWave.deb file, go to your /home/yourUserName folder and enable “View → Show Hidden Files,” then modify the end of the .bashrc file as shown below:


Bash:
# enable programmable completion features (you don't need to enable
# this, if it's already enabled in /etc/bash.bashrc and /etc/profile
# sources /etc/bash.bashrc).
if ! shopt -oq posix; then
  if [ -f /usr/share/bash-completion/bash_completion ]; then
    . /usr/share/bash-completion/bash_completion
  elif [ -f /etc/bash_completion ]; then
    . /etc/bash_completion
  fi
fi

fixmw() {

  FILE="/usr/share/motivewave/run.sh"

  if grep -q GDK_CORE_DEVICE_EVENTS "$FILE"; then
    echo "MotiveWave mouse issue patch already applied."
  else
    sudo sed -i '/^set -e/i export GDK_CORE_DEVICE_EVENTS=1\nexport GDK_BACKEND=x11' "$FILE"
    echo "MotiveWave mouse issue patch applied."
  fi

}

installmw() {

  DOWNLOAD_DIR="$HOME/Downloads"

  # Find the newest matching MotiveWave .deb file
  DEB_FILE=$(ls -t "$DOWNLOAD_DIR"/motivewave*amd64*.deb 2>/dev/null | head -n 1)

  if [ -z "$DEB_FILE" ]; then
    echo "No MotiveWave amd64 .deb file found in Downloads."
    return 1
  fi

  # Extract version from filename
  FILE_VERSION=$(basename "$DEB_FILE" | sed -E 's/motivewave_([^_]+)_amd64\.deb/\1/')

  # Get currently installed version (if installed)
  INSTALLED_VERSION=$(dpkg -s motivewave 2>/dev/null | grep '^Version:' | awk '{print $2}')

  if [ "$FILE_VERSION" = "$INSTALLED_VERSION" ]; then
    echo "MotiveWave version $FILE_VERSION is already installed."
    return 0
  fi

  echo "Installing MotiveWave version $FILE_VERSION..."
  sudo dpkg -i "$DEB_FILE"

  echo "Installation finished."
}

updatemw() {

  echo "Starting MotiveWave update..."

  # Run installer
  installmw
  INSTALL_STATUS=$?

  # If install failed (like no file found), stop
  if [ $INSTALL_STATUS -ne 0 ]; then
    echo "Update stopped due to installation issue."
    return 1
  fi

  # Apply mouse fix
  fixmw

  echo "MotiveWave update process completed."
}

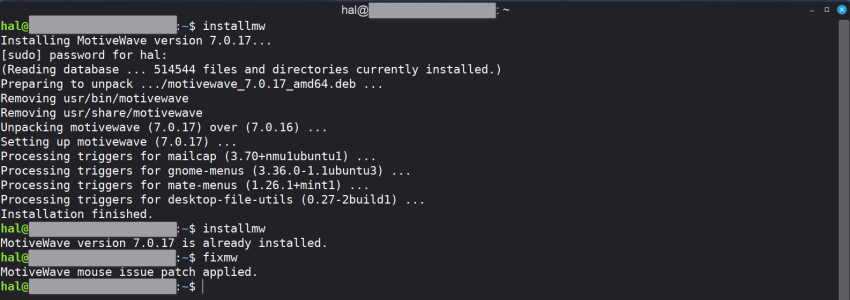

As you can see, I added three functions named fixmw, installmw, and updatemw. Once I download a new MotiveWave.deb installation file into my /home/yourUserName/Downloads, I open the terminal and type "installmw". This checks whether the latest MotiveWave.deb file is installed. If it is not installed yet, it will install the latest version.

Then, I type "fixmw", which opens run.sh in /usr/share/motivewave, finds the set -e line, and adds the following lines above it to fix the mouse scrolling issue:

export GDK_CORE_DEVICE_EVENTS=1
export GDK_BACKEND=x11

It then saves and closes the file. After that, I close terminal and launch MotiveWave.

Instead of using "installmw" and then typing "fixmw", you can simply type "updatemw", which performs both actions.mwinstall2.png
